Create a DungeonAisleMeshSetDatabase asset
- Right click on the content browser and select
DungeonGenerator->DungeonAisleMeshSetDatabaseto create the asset.

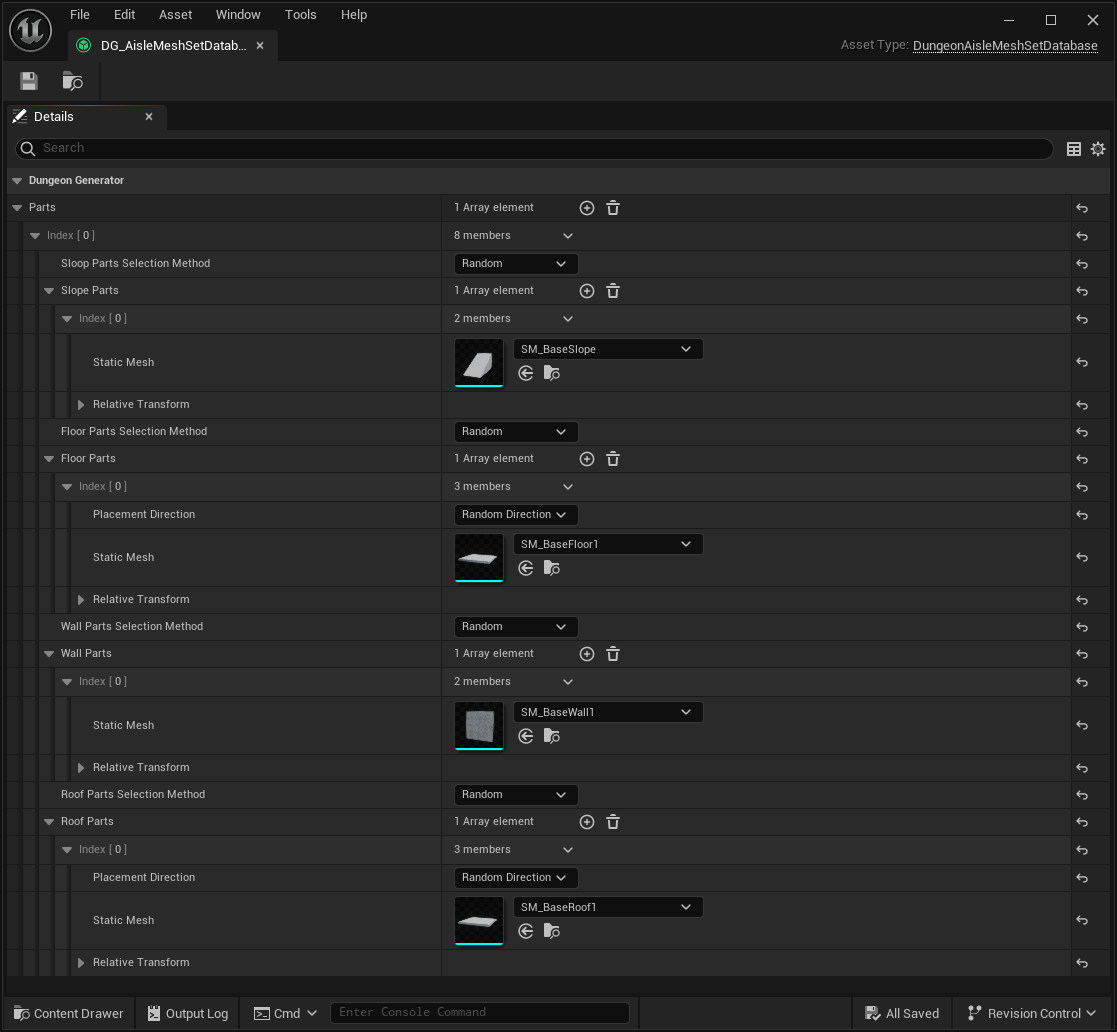

Configure the DungeonAisleMeshSetDatabase.
In addition to the contents of [DungeonRoomMeshSetDatabase asset](2_1_Prepare DungeonRoomMeshSetDatabase), slope parts can be specified.
Parts Selection Method
| Name | Function |
|---|---|
| Random | Parts Selection Method |
| Grid Index | Select parts based on grid numbers |
| Direction | Select parts based on grid direction |
Placement Direction
| Name | Function |
|---|---|
| North | Generate mesh facing north |
| East | Generate mesh facing east |
| South | Generate mesh facing south |
| West | Generate mesh facing west |
| Follow Grid Direction | Generate mesh based on grid direction |
| Random Direction | Generate the mesh in a random direction |
Static Mesh
Specify the static mesh to be generated. The mesh can be obtained from Prepare Mesh Parts page.
Relative Transform
Relative Transform
Slope Parts
Stair or slope parts
